Industrial Catalog & Supplies
We are a family business with over 100 years combined experience in the Sewn Products Industry, providing high-quality Parts and Supplies for all your sewing needs. Browse our collection and find exactly what you need for your next project. We also offer custom made Folders / Binders, Gauge Sets, etc.
We are continuously adding products to our store. If you don't find what you are looking for, call our office at 256-229-6595 or send an email to rachelleroberts@collierequipment.com.
Cedar Special

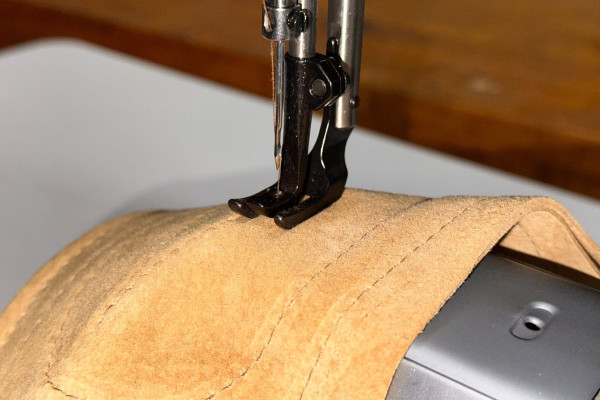

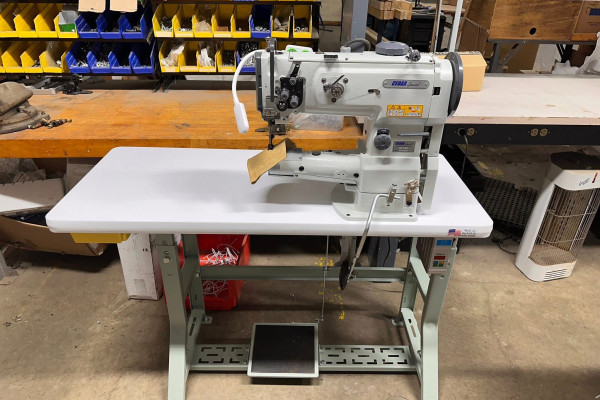

CS-1341
Our CS-1341 is a Belt Drive, heavy-duty, Single-Needle cylinder-bed compound feed, lockstitch sewing machine. It is engineered for thick, demanding materials such as automotive interiors, leather goods, home upholstery, and heavy bags. We provide with your choice of table, legs and Servo Motor.
Specifications:
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: Ideal for car seats, sofas, tents, luggage, and thick thread sewing.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot
CS-1341
Our CS-1341 is a Belt Drive, heavy-duty, Single-Needle cylinder-bed compound feed, lockstitch sewing machine. It is engineered for thick, demanding materials such as automotive interiors, leather goods, home upholstery, and heavy bags. We provide with your choice of table, legs and Servo Motor.
Specifications:
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: Ideal for car seats, sofas, tents, luggage, and thick thread sewing.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cylinder Bed
CS-1341
Our CS-1341 is a Belt Drive, heavy-duty, Single-Needle cylinder-bed compound feed, lockstitch sewing machine. It is engineered for thick, demanding materials such as automotive interiors, leather goods, home upholstery, and heavy bags. We provide with your choice of table, legs and Servo Motor.
Specifications:
* Max Speed: 2,500
* Max Stitch Length: 8mm
* Working Space: 255mm Left to Right, 110mm Top to Bottom.
* Feed System: Compound feed (walking foot) and needle feed.
* Bed Type: Cylinder bed, which allows for easy manipulation of 3D, tubular, and curved items.
* Applications: Ideal for car seats, sofas, tents, luggage, and thick thread sewing.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Post Bed

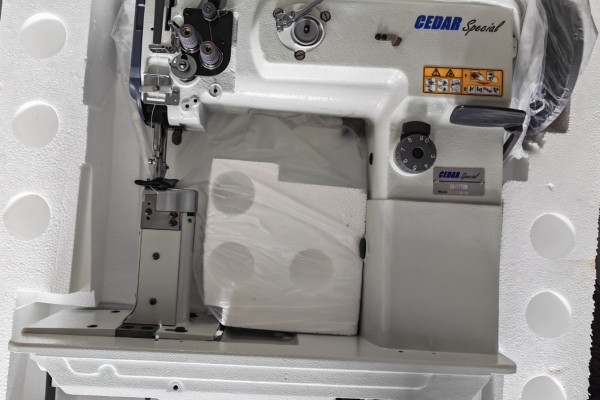

CS-1710N
Our CS-1710N is a post-bed, 1-needle, unison-feed lockstitch machine designed for heavy-duty applications like car seats, furniture, and leather goods. It features an alternating vertical movement mechanism to prevent irregular stitches and is prized by professionals for handling thick materials up to 16 mm thick.
Key Features:
*Belt type
* Feed Mechanism: Unison feed (drop feed, needle feed, and walking foot) prevents slippage when sewing multiple thick layers.
* Stitch Capacity: Handles large stitch lengths up to 9mm to 12mm, ideal for thick threads and decorative topstitching.
* Clearance: Post-bed height typically ranges between 7 to 8 inches, giving you excellent maneuverability for tight, inside curves and corners.
* Hook: Equipped with large vertical-axis hook or extra-large bobbins to accommodate thick industrial threads (like TEX 138) without constant refilling.
Usage and Applications
* Post-bed machines excel where flatbed machines fail: allowing irregular and pre-assembled 3D shapes to rotate freely around the elevated pillar.
* Bags & Footwear: Excellent for gussets, boxing, and adding structural piping.
* Topstitching: Many operators use spring-loaded edge-guide feet to achieve flawless parallel topstitching on curved edges.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot

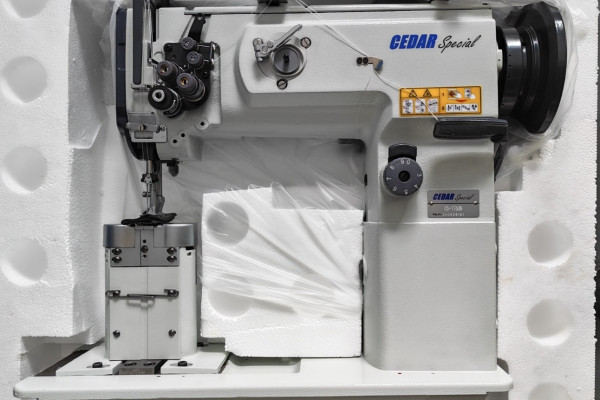

CS-1760N
Our CS-1760N is a post-bed, 2-needle, unison-feed lockstitch machine designed for heavy-duty applications like car seats, furniture, and leather goods. It features an alternating vertical movement mechanism to prevent irregular stitches and is prized by professionals for handling thick materials up to 16 mm thick.
Key Features:
*Belt type
* Needle Gauge : Available in different needle gauges.
* Feed Mechanism: Unison feed (drop feed, needle feed, and walking foot) prevents slippage when sewing multiple thick layers.
* Stitch Capacity: Handles large stitch lengths up to 9mm to 12mm, ideal for thick threads and decorative topstitching.
* Clearance: Post-bed height typically ranges between 7 to 8 inches, giving you excellent maneuverability for tight, inside curves and corners.
* Hooks: Equipped with large vertical-axis hooks or extra-large bobbins to accommodate thick industrial threads (like TEX 138) without constant refilling.
Usage and Applications
* Post-bed machines excel where flatbed machines fail: allowing irregular and pre-assembled 3D shapes to rotate freely around the elevated pillar.
* Bags & Footwear: Excellent for gussets, boxing, and adding structural piping.
* Topstitching: Many operators use spring-loaded edge-guide feet to achieve flawless parallel topstitching on curved edges.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Post Bed
CS-1760N
Our CS-1760N is a post-bed, 2-needle, unison-feed lockstitch machine designed for heavy-duty applications like car seats, furniture, and leather goods. It features an alternating vertical movement mechanism to prevent irregular stitches and is prized by professionals for handling thick materials up to 16 mm thick.
Key Features:
*Belt type
* Needle Gauge : Available in different needle gauges.
* Feed Mechanism: Unison feed (drop feed, needle feed, and walking foot) prevents slippage when sewing multiple thick layers.
* Stitch Capacity: Handles large stitch lengths up to 9mm to 12mm, ideal for thick threads and decorative topstitching.
* Clearance: Post-bed height typically ranges between 7 to 8 inches, giving you excellent maneuverability for tight, inside curves and corners.
* Hooks: Equipped with large vertical-axis hooks or extra-large bobbins to accommodate thick industrial threads (like TEX 138) without constant refilling.
Usage and Applications
* Post-bed machines excel where flatbed machines fail: allowing irregular and pre-assembled 3D shapes to rotate freely around the elevated pillar.
* Bags & Footwear: Excellent for gussets, boxing, and adding structural piping.
* Topstitching: Many operators use spring-loaded edge-guide feet to achieve flawless parallel topstitching on curved edges.
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Needle Feed
CS-1291-7D
The CEDAR Special CS-1291-7D is a Needle Feed, Post Bed Machine
Key Features:
* Single Needle
* Direct Drive
* Automatic Foot Lift
* Automatic Thread Trim
* Automatic Back Tack
* Voltage : 220v
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

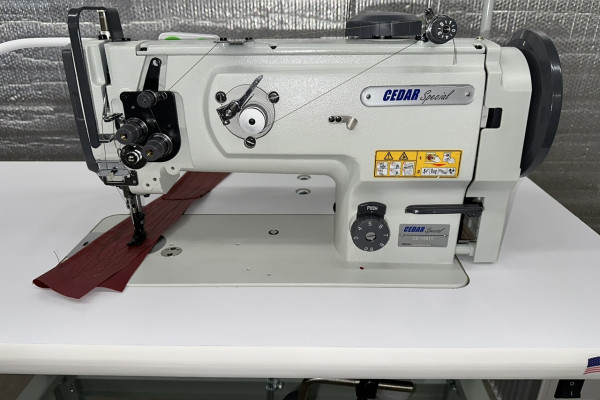

CS-1541S
The CEDAR Special CS-1541S is a Single Needle, Walking Foot machine.
* Key Features:
* Maximum Stitch Length: 9mm
* Foot Lift: 9mm by hand, 16mm with knee lever.
* Integrated Bobbin Winder
* Manual Reverse Lever
* Dual Thread Tension Control
* 30 LED Light w/ Magnetic Base, 3 levels, Touch Control.
* 750W Servo Motor ( Available in 110V or 220V )
* Standard Bobbin Case Opener
* Standard Safety Clutch
* Ease of Walking Foot Height Adjustment
* Common Uses Because of its power, you will find the 1541 in workshops that make:
* Marine or auto upholstery
* Heavy bags and backpacks
* Leather crafts (belts, wallets, heavy jackets)
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Walking Foot
CS-1541S
The CEDAR Special CS-1541S is a Single Needle, Walking Foot machine.
* Key Features:
* Maximum Stitch Length: 9mm
* Foot Lift: 9mm by hand, 16mm with knee lever.
* Integrated Bobbin Winder
* Manual Reverse Lever
* Dual Thread Tension Control
* 30 LED Light w/ Magnetic Base, 3 levels, Touch Control.
* 750W Servo Motor ( Available in 110V or 220V )
* Standard Bobbin Case Opener
* Standard Safety Clutch
* Ease of Walking Foot Height Adjustment
* Common Uses Because of its power, you will find the 1541 in workshops that make:
* Marine or auto upholstery
* Heavy bags and backpacks
* Leather crafts (belts, wallets, heavy jackets)
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Labor Saving Devices

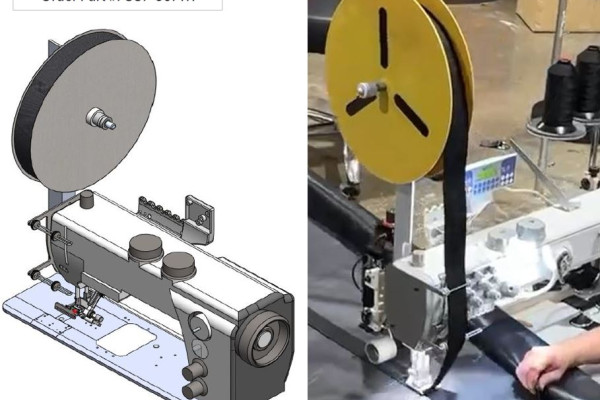

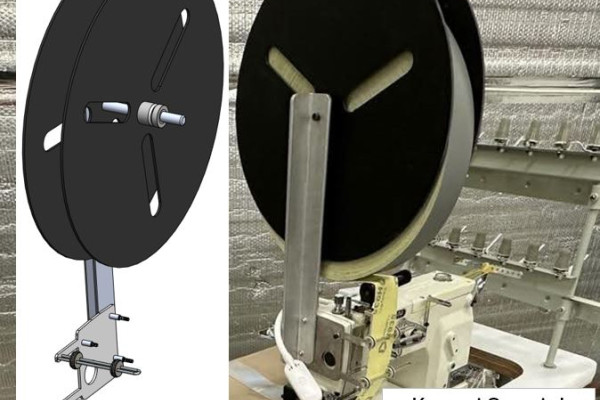

Tape Guide Assembly ( Upper )
CEDAR Systems Labor Saving Device
* Overhead reels to hold rolls of materials such as Hook & Loop, Striping Materials, Webbing, Lining, Keder, Silicone, Zipper, Cord, etc.
* Can be custom configured to fit your specific application.
* Large roll feeders are also available.
* Custom Guides are available *
* Can be custom designed for your specific application(s).
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
CEDAR Systems Automated
Tape Guide Assembly ( Upper )
CEDAR Systems Labor Saving Device
* Overhead reels to hold rolls of materials such as Hook & Loop, Striping Materials, Webbing, Lining, Keder, Silicone, Zipper, Cord, etc.
* Can be custom configured to fit your specific application.
* Large roll feeders are also available.
* Custom Guides are available *
* Can be custom designed for your specific application(s).
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
Cedar Special

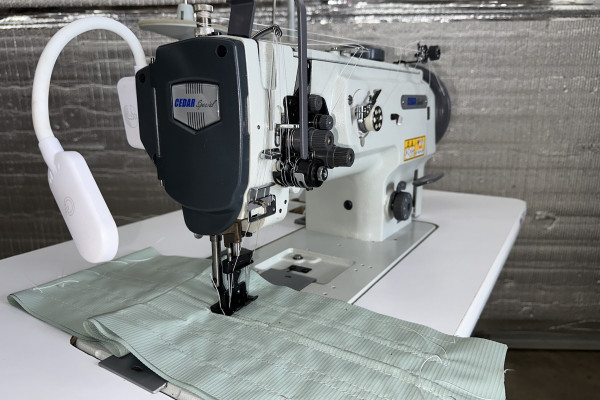

CS-1560N-7D
The CEDAR Special CS-1560N-7D is a heavy-duty, 2-needle unison-feed (walking foot) lockstitch machine featuring an automatic thread trimmer and an alternating foot stroke adjusting dial. It is purpose-built for heavy materials like leather, canvas, upholstery, and vinyl.
* Key Specifications
* Direct Drive
* Sewing Speed: Up to 2,500 stitches per minute (spi/min)
* Stitch Length: Up to 9 mm (both forward and reverse)
* Needle System: 135x17 (Sizes from Nm125 to Nm180)
* Needle Bar Stroke: 36 mm
* Presser Foot Lift: 9 mm (by hand), 16 mm (by knee or auto-lifter)
* Alternating Vertical Movement: Adjustable between 1 mm to 6.5 mm
* Hook: Vertical-axis double-capacity hooks
* Standard Needle Gauges: 1/4" (6.4 mm) (Available from 3/16" to 1/2")
* Custom Folders, Guides, Clamps and Pallets are available.
• Phone: (256) 229-6595
• Email: Sales@CollierEquipment.com
